Snap-Action Switches
Series 1005
- Friction contact system the shearing movement of which can loosen weldings
- Very high inrush currents (capacitive)
- Contact distances less and > 3mm
- Operating forces from 0.2 - 4.2N
Series 1010
- Powerful snap-action switch with C-spring contact system according to design DIN 41635C
- High switching reliability due to large contact forces directly after switching
- Small size, large travel and difference travel
- Short bounce time
- Contact system insensitive to vibrations

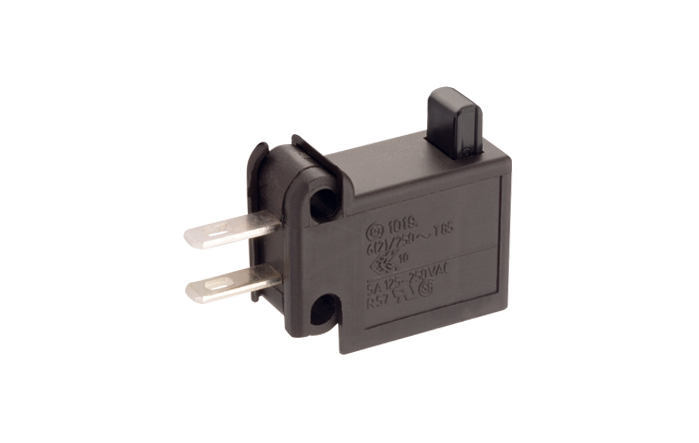

Series 1019
- Snap-action switches with and without housing
- Contact distance > 3mm
- NO and NC contact versions

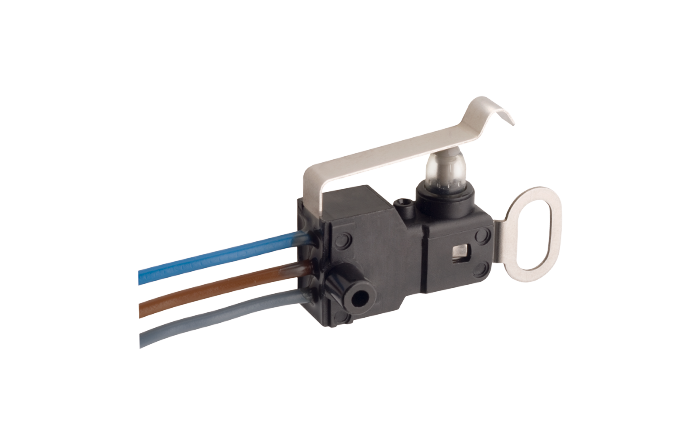

Series 1022
- Dust and water protection actuator and connection side
- Ice-proof lever bearing
- Small size, large travels
- High switching reliability due to great contact forces directly after switching
- Series with different fastening possibilities

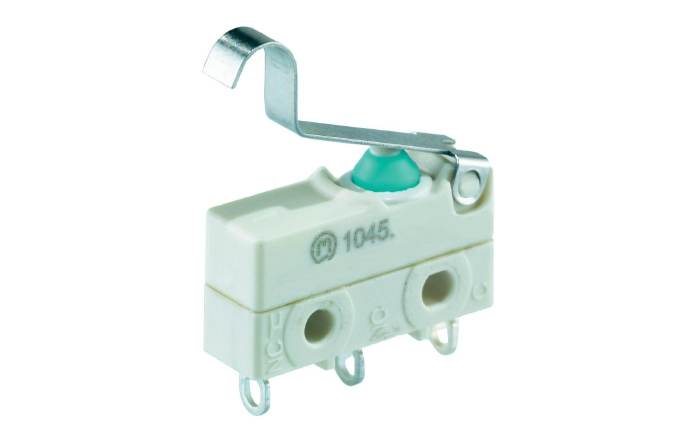

Series 1045
- Dust and water protected switching system according IP67
- Rating from low DC signal currents to ratings of 10 (3)A @ 250Vac
- Versions for high motor rating up to 6 (6)A @ 250Vac
- Versions with integrated mechanism for breaking contact weldings
- IEC 60335 Chapter 30 approved for household appliances
- Long life endurance with more than 10 million switching cycles

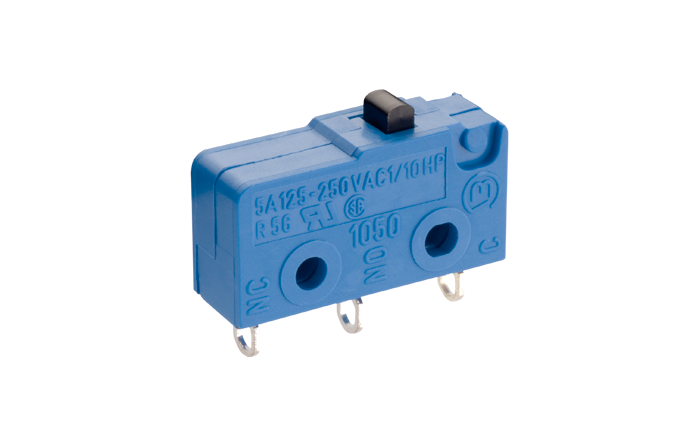

Series 1050
- Small, efficient snap-action switches up to 10 (1.5)A @ 250Vac or 10.1A @ 125 - 250Vac, 1/4 HP
- Lateral approach from both directions possible due to mushroom-shaped actuator
- Large selection of auxiliary actuators of chrome-nickel steel and plastic

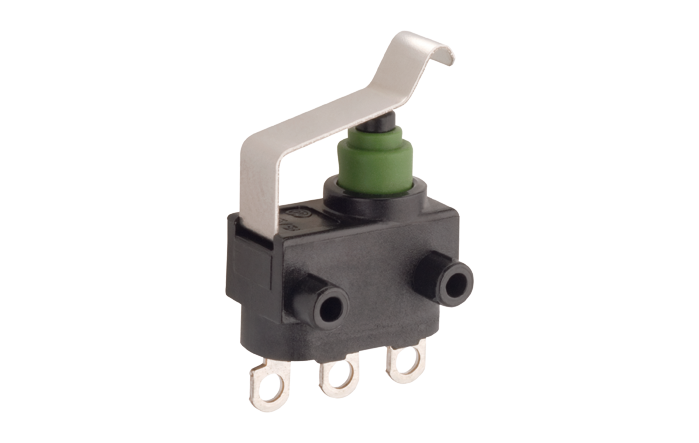

Series 1055
- Compact design with dust and water protected switching system acc. to IP67 (basic types 1055/1058)
- Large overtravel of >= 1.2mm for small size
- The specially designed pushbutton guide enables a start-up angle of ≤ 40°.
- The modular principle offers a wide selection of connections, auxiliary actuators and fastening types

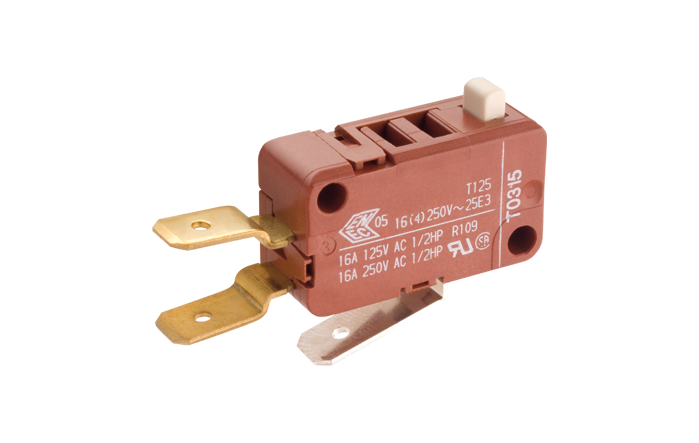

Series 1080
- The precise mounting of the moving contact part (milled bearing blade) offers optimum snap-action even with slow actuation.
- Wide range of ratings from 3 (1)A @ 250Vac to 21 (8)A @ 250Vac
- Versions with gold plated contacts for signal current applications
- Various auxiliary actuators, two suspension points

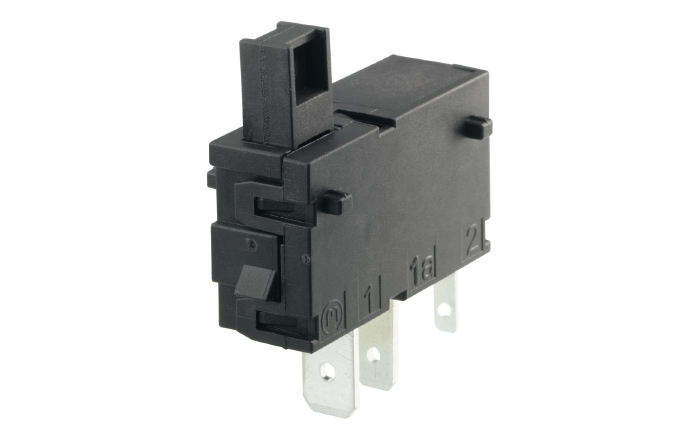

Series 1086
- Automatic switching off with signal from the end device (remote-off)
- Version with auxiliary contact for a delayed shut-off by the end device
- 100 million times proven 1080 snap action switching system
- Compact, one piece solution
- Variable actuator design with holder
- Energy neutral through total single-pole galvanic separation - “Zero-Watt”
Series 1115
- Double lifting contact system
- Contact distance > 3mm
- Actuator can be approached from all directions
- Normally-open contact, normally-closed contact and changeover versions

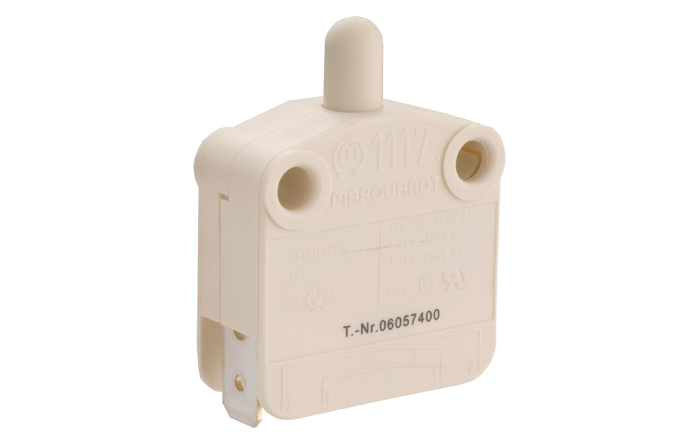

Series 1117
- Double interrupting jump contact switching system
- Contact distance > 3mm
- Material conformant with the filament wire test acc. to IEC 60335-1:2001 chap. 30 and UL 94 V-0
- Large overtravel
- Actuator can be approached from all directions
- Normally-open contact and normally-closed contact versions
